Page 1

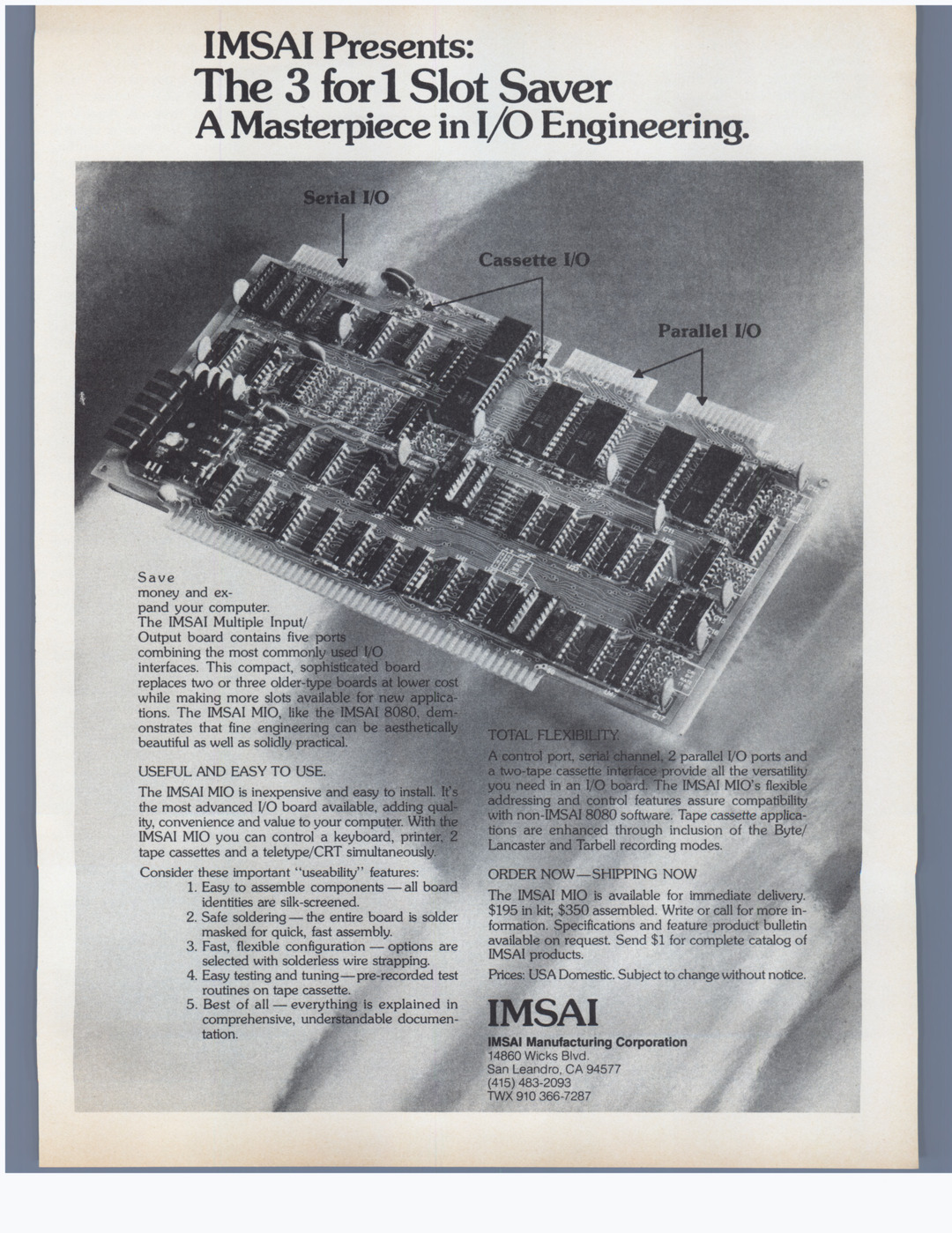

IMSAI Presents:
The 3 for 1 Slot Saver
A Masterpiece in I/O Engineering.
money and ex-
pand your computer.
The IMSAI Multiple Input/ |
Output board contains five
combining the most comm
interfaces. This compact,
replaces two or three older.
while making more slots
tions. The IMSAI MIO
onstrates that fine eng
beautiful as well as solid
USEFUL AND EASY TO USE.
The IMSAI MIO is inexpensive
the most advanced I/O board avail
ity, convenience and value to your compu
IMSAI MIO you can control a keyboard, »
tape cassettes and a teletype/CRT simultaneo
Consider these important ‘‘useability’’ features:
1. Easy to assemble components — all
identities are silk-screened.
2. Safe soldering — the entire board is dides
masked for quick, fast assembly. _
3. Fast, flexible configuration — opti
selected with solderless wire st
4. Easy testing and tuning— pre-
routines on tape cassette.
5. Best of all — everythi
comprehensive, und
tation.
es - 366-7287
[/expand]
‘A Masterpiece in I/O Engineering’
The IMSAI Multiple Input/Output (MIO) board was a multi-interface IO board for the IMSAI 8080 and other S100-based computers. Available for 195USD in kit form and 350USD pre-assembled, the board gave the user access to one serial, two parallel, and two cassette interfaces which, in theory, would allow the user to connect a keyboard, printer, two cassette tapes and a teletype/CRT to their computer whilst only consuming a single S100 slot.
A product manual and board schematics for the IMSAI MIO board can be found at s100computers.com
Taken from: Kilobaud Microcomputing - Issue 7 (July 1977)
