Is your dollar buying...
Written on January 23rd , 2026 by Tech Ads
[expand]
Page 1
‘ : Lap a ay an: ate ag ie hao et OS in ae Re ah .
pe ee ante a a RR Se Sta tte LS te i

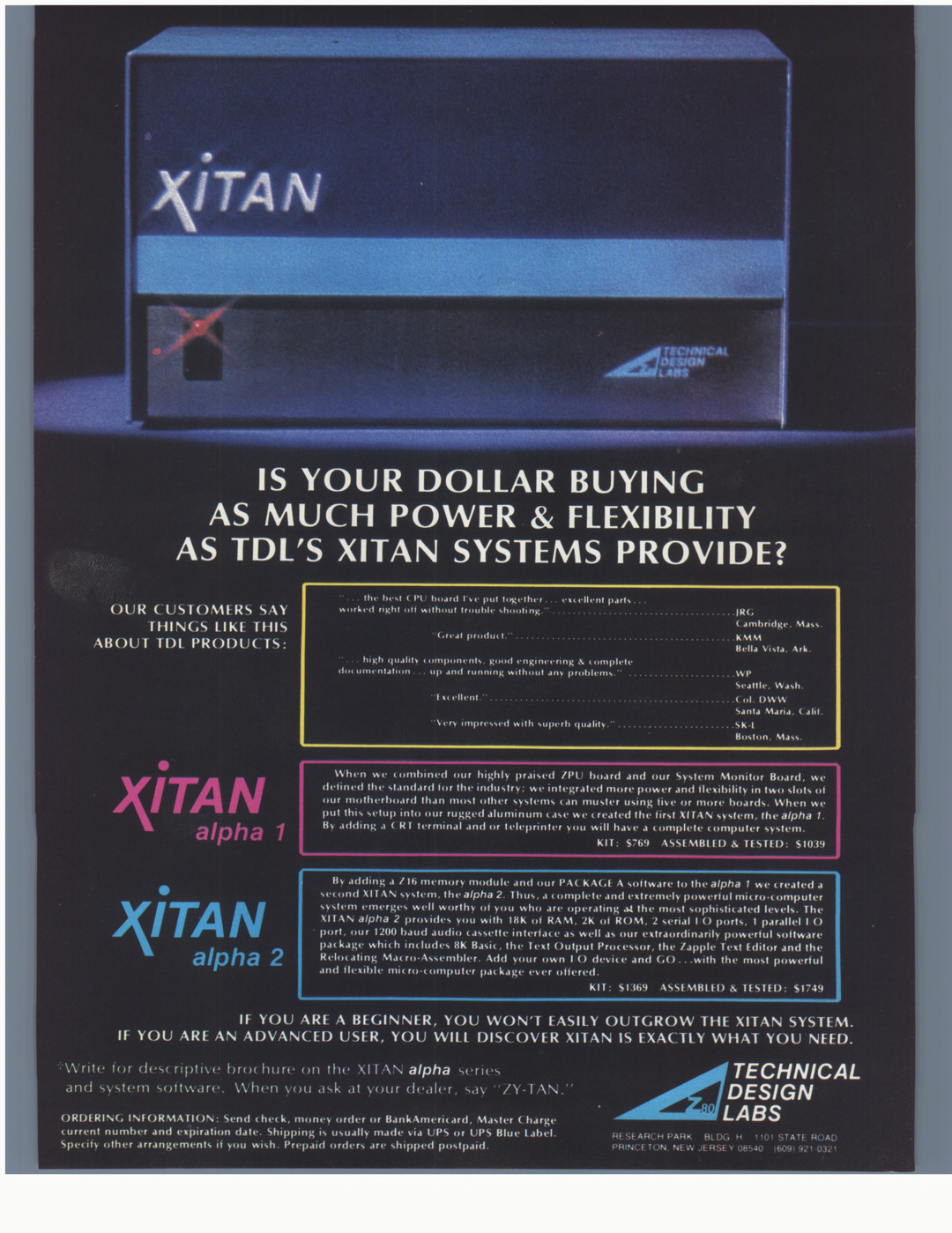

IS YOUR DOLLAR BUYING
AS MUCH POWER & FLEXIBILITY
AS TDL’S XITAN SYSTEMS PROVIDE?
the best CPU board I've put together... excellent parts...
OUR CUSTOMERS SAY worked right off without trouble shooting.” oo
THINGS LIKE THIS Great product.” 2.0... cian eit
ABOUT TDL PRODUCTS: Bella Vista, Ark.
high quality Components, good engineering & Complete
documentation... up and running without any problems.” we
Seattle, Wash.
“Excellent.” Col. DWW
Santa Maria, Calif.
SK-l
Boston, Mass.
When we combined our highly praised Z7PU board and our System Monitor Board, we
&
detined the standard for the industry; we integrated more power and flexibility in two slots of
our motherboard than most other systems can muster using five or more boards. When we
put this setup into our rugged aluminum case we created the first XITAN system, the alpha 1.
By adding a CRT terminal and or teleprinter you will have a complete Computer system.
alpha 7 KIT: $769 ASSEMBLED & TESTED: $1039
By adding a 716 memory module and our PACKAGE A software to the alpha 1 we createda
S second XITAN system, the alpha 2. Thus, a complete and extremely powerful mic ro-computer
system emerges well worthy of you who are operating at the most sophisticated levels. The
XITAN alpha 2 provides you with 18K of RAM, 2K of ROM, 2 serial | O ports, 1 parallel | O
| j A N port, our 1200 baud audio Cassette interface as well as our extraordinarily powerful software
package which includes 8K Basic, the Text Output Processor, the Zapple Text Editor and the
alpha 2 Relocating Macro-Assembler. Add your own |O device and GO...with the most powerful
and flexible micro-computer package ever offered.
KIT: $1369 ASSEMBLED & TESTED: $1749
IF YOU ARE A BEGINNER, YOU WON'T EASILY OUTGROW THE XITAN SYSTEM.
IF YOU ARE AN ADVANCED USER, YOU WILL DISCOVER XITAN IS EXACTLY WHAT YOU NEED.
“Write tor descriptive brochure on the XITAN alpha series TECHNICAL
and system software. When you ask at your dealer, say ““ZY-TAN.”’ DESIGN
ORDERING INFORMATION: Send check, money order or BankAmericard, Master Charge LABS
current number and expiration date. Shipping is usually made via UPS or UPS Blue Label. RESEARCH PARK BLDG H_ 1101 STATE ROAD
Specify other arrangements if you wish. Prepaid orders are shipped postpaid. PRINCETON. NEW JERSEY 08540 (609) 921-0321
[/expand]
‘Is your dollar buying…’
Technical Design Labs’s Xitan Alpha range of computers were first released in 1976. Like the Altair 8800, the Xitan Alpha range was based around the S-100but, unlike the Altair 8800 with it’s Intel 8080 CPU, the Alpha range was paired with a Zilog Z80 CPU running at either 2 or 4 Mhz. The Xitan Alpha 1 variant shipped with 2KB of RAM, serial I/O ports, and an audio cassette interface for 769 USD in kit form or 1039 USD assembled and tested. Xitan Alpha 2 adds an additional 16Kb of RAM and a software bundle that included BASIC and an Assembler for 1369 USD in kit form or 1749 USD assembled and tested.
A marketing brochure for both the Xitan Alpha 1 and Alpha 2 can be found at the Internet Archive.
Taken from: Kilobaud Microcomputing - Issue 7 (July 1977)
